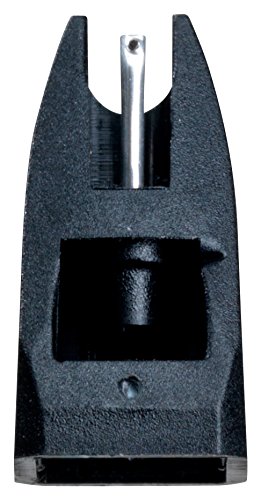

Ortofon Stylus 30 - Stilo

Ortofon Stylus 30

Technical specifications Frequency range - 20-29.000 Hz Frequency response - 20-20.000 Hz + 2 / - 3 dB Tracking ability at 315Hz at recommended tracking force *) - 90 µm Compliance, dynamic, lateral - 25 µm/mN Stylus type - Nude Fine LIne Stylus tip radius - r/R 8/40 µm Equivalent stylus tip mass - 0,3 mg Tracking force range - 1.25-1.75 g (12.5-17.5 mN) Tracking force, recommended - 1.5 g (15 mN) Tracking angle - 20° Stylus colour - Black

Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H

*) Typical value
