InnoMaker LA2016 USB Logic Analyzer Full 16 channels 200MHz sampling rate with the PC software handheld instrument,Support Windows (32bit/64bit),Mac OS,Linux, (LA2016)

Condividi:

  • LA2016 is a high-performance logic analyzer with 16 full channels and 200MHz sampling rate.
  • It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
  • LA2016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.
  • Support OS: Support Windows (32bit/64bit),Mac OS,Linux

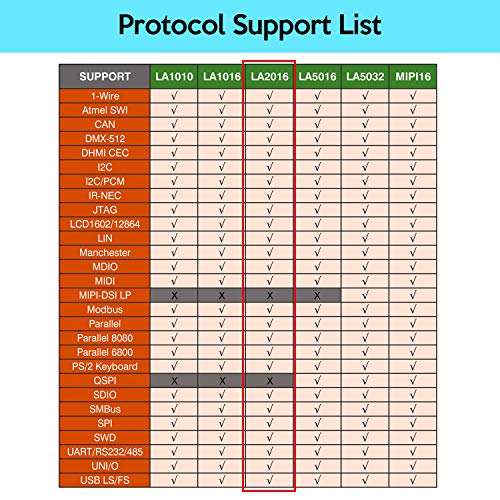

  • Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc.

[Note:] InnoMaker has experienced embedded design team, we can supply customized board based on Raspberry Pi, Micro:bit, Beaglebone and other open source boards, and provide PCBA production, board testing, and product assembling.

Features:

  • Portable and lightweight
  • 200M sampling rate @ full channels
  • Large sampling depth and support compression
  • The built-in PWM generator
  • Compatible USB2.0/3.0 interface
  • Powerful software and easy to use
  • Support online upgrade automatically

Specification:

  • Input channels number: 16
  • Max sampling rate: 200M
  • Measurement bandwidth: 40M
  • Min pulse width can be captured: 12.5ns
  • Hardware memory size: 1Gbits
  • Hardware sampling depth: 50M/channel
  • Max compressed depth: 10G/channel
  • Input voltage range: -50V ~ +50V
  • Input impedance: 220KΩ, 12pF
  • Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
  • PWM channels number: 2
  • PWM frequency range: 0.1 ~ 20MHz
  • PWM frequency adjust step: 10ns
  • PWM pulse width adjust step: 5ns
  • PWM output voltage: +3.3V
  • PWM output impedance: 50Ω
  • Standby current: 150mA
  • Max operating current: 300mA
  • Dimensions: 95mm * 55mm * 23mm
  • Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)
  • Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc…

Packing List:

  • 1 x LA2016 Logic Analyzer
  • 3 x 9P Wire
  • 2 x 2P Wire
  • 20 x Test Hook Clip
  • 1 x USB2.0 Cable
  • 1 x CD-ROM
